Get Started with futebolplotR

Bruno Mioto & Gabriela Junqueira

Install the Package

The easiest way to get futebolplotR is to install it from with:

if (!require("pak")) install.packages("pak")
pak::pak("brunomioto/futebolplotR")

Common usage

Let’s explore a few standard scenarios for utilizing futebolplotR. Initially, we load the essencial packages.

library(futebolplotR)
library(ggplot2)
library(dplyr)
library(brasileirao)

We will load the data for the Campeonato Brasileiro and explore the database. We will select the 2025 season of the Campeonato Brasileiro.

season_2025 <- brasileirao::matches |>
  dplyr::filter(season == 2025) |>
  brasileirao::add_variables() |>
  # brasileirao doesn't have an abbreviation for Mirassol yet
  mutate(home_abbr = if_else(home == "Mirassol", "MIR", home_abbr))

season_2025_home <- season_2025 |>
    group_by(home) |>
    summarise(home_abbr = first(home_abbr),
              total_home_points = sum(home_points),
              goal_concede_home = sum(as.numeric(away_score)),
              goal_scored_home = sum(as.numeric(home_score)),
              .groups = "drop") |>
    rename(fc = home)

season_2025_away <- season_2025 |>
    group_by(away) |>
    summarise(total_away_points = sum(away_points),
              goal_concede_away = sum(as.numeric(home_score)),
              goal_scored_away = sum(as.numeric(away_score)),
              .groups = "drop") |>
    rename(fc = away)


df_teams <- season_2025_home |>
    left_join(season_2025_away, by = "fc") |>
    mutate(goals_concede = goal_concede_home + goal_concede_away,
           goals_scored = goal_scored_home + goal_scored_away,
           goals_difference = goals_scored - goals_concede)

Badges in Scatter Plots

Firstly, we will visualize the points earned at home and away for each team. This will be done to demonstrate how we can use the team badges.

ggplot(df_teams, aes(x = total_home_points, y = total_away_points)) +
  geom_abline(color = "grey30")+
  futebolplotR::geom_futebol_badges(aes(team_abbr = home_abbr),
                                    width = 0.064, alpha = 0.8) +
  labs(
    x = "Points home",
    y = "Points away",
    caption = "Data: williamorim/brasileirao",
    title = "Campeonato Brasileiro 2025"
  ) +
  theme_minimal() +
  theme(
    plot.title = element_text(face = "bold"),
    plot.title.position = "plot"
  ) +
  coord_fixed(
    xlim = c(5, 50),
    ylim = c(5, 50),
    clip = "off"
  )

Team Colors and Badges as Axis Labels

Now, we will demonstrate how we can incorporate each team’s specific colors into the shapes (in this case, the bars of the graph) and how we can use the team badges as axis labels.

ggplot(df_teams, aes(x = reorder(home_abbr, -goals_scored),
                              y = goals_scored)) +
  geom_col(aes(color = home_abbr, fill = home_abbr),
           width = 0.6) +
  futebolplotR::scale_color_futebol(type = "secondary") +
  futebolplotR::scale_fill_futebol(type = "primary") +
  labs(
    title = "Campeonato Brasileiro 2025",
    y = "Goals Scored",
    caption = "Data: williamorim/brasileirao"
  ) +
  theme_minimal() +
  theme(
    plot.title = element_text(face = "bold"),
    plot.title.position = "plot",
    axis.title.x = element_blank(),
    # this line triggers the replacement of team abbreviations with badges
    # use axis.text.x.bottom (not axis.text.x) with complete themes like theme_minimal()
    axis.text.x.bottom = futebolplotR::element_futebol_badge(size = 0.8)
  )

ggplot(df_teams, aes(x = reorder(home_abbr, -goals_difference),
                              y = goals_difference)) +
  geom_col(aes(color = home_abbr, fill = home_abbr),
           width = 0.6) +
  futebolplotR::scale_color_futebol(type = "secondary") +
  futebolplotR::scale_fill_futebol(type = "primary") +
  labs(
    title = "Campeonato Brasileiro 2025",
    y = "Goals difference",
    caption = "Data: williamorim/brasileirao"
  ) +
  theme_minimal() +
  theme(
    plot.title = element_text(face = "bold"),
    plot.title.position = "plot",
    axis.title.x = element_blank(),
    # this line triggers the replacement of team abbreviations with badges
    # use axis.text.x.bottom (not axis.text.x) with complete themes like theme_minimal()
    axis.text.x.bottom = futebolplotR::element_futebol_badge(size = 0.8)
  )

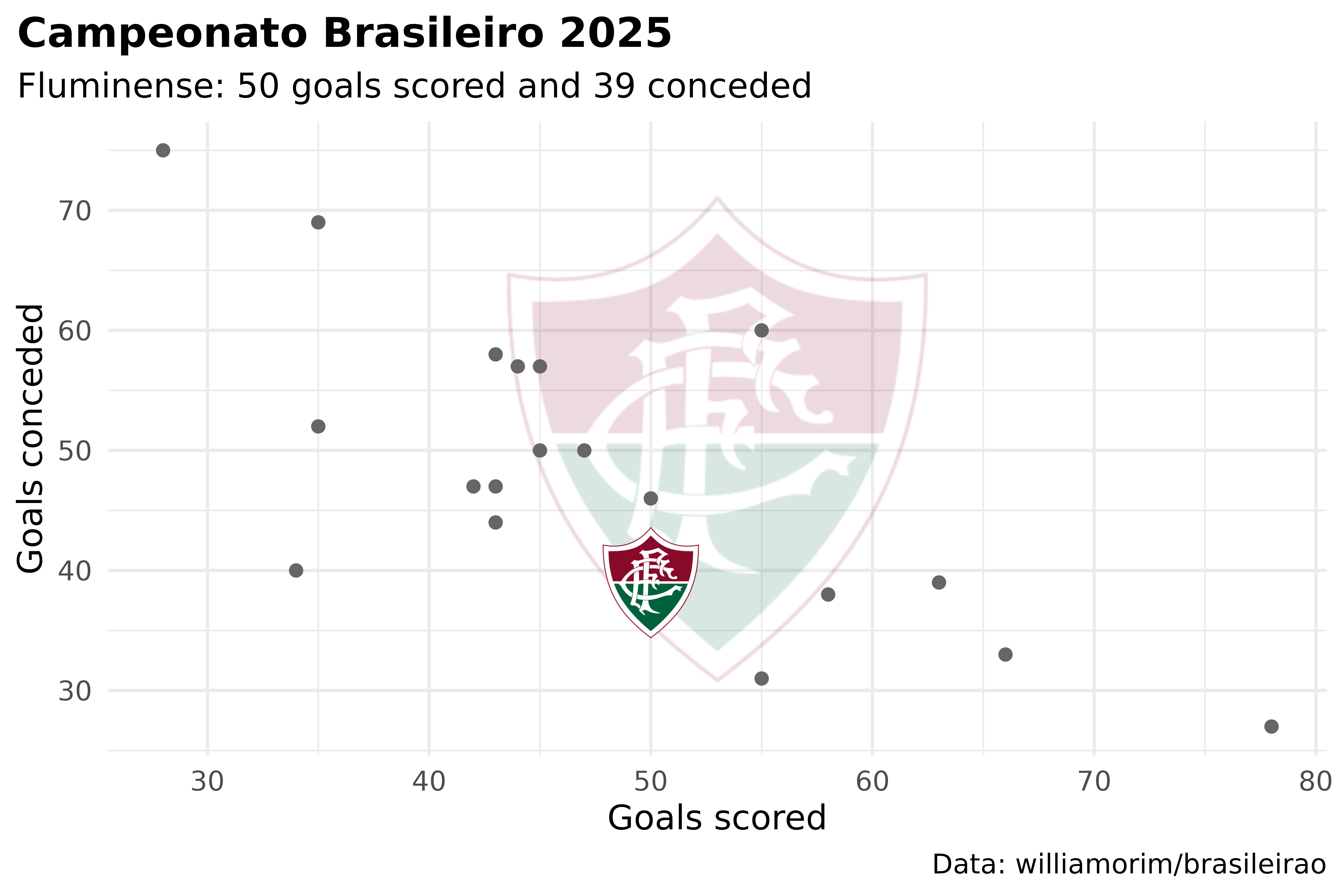

Badges as Annotations

Badges can also be added to a single position of the plot with annotate(). This is useful to highlight a team, or to add a badge to the plot background.

fluminense <- df_teams |>
  filter(home_abbr == "FLU")

ggplot(df_teams, aes(x = goals_scored, y = goals_concede)) +
  annotate(
    "futebol_badges",
    x = mean(range(df_teams$goals_scored)),
    y = mean(range(df_teams$goals_concede)),
    team_abbr = "FLU",
    width = 0.35, alpha = 0.15
  ) +
  geom_point(color = "grey40") +
  annotate(
    "futebol_badges",
    x = fluminense$goals_scored, y = fluminense$goals_concede,
    team_abbr = "FLU",
    width = 0.08
  ) +
  labs(
    title = "Campeonato Brasileiro 2025",
    subtitle = paste0(
      "Fluminense: ", fluminense$goals_scored, " goals scored and ",
      fluminense$goals_concede, " conceded"
    ),
    x = "Goals scored",
    y = "Goals conceded",
    caption = "Data: williamorim/brasileirao"
  ) +
  theme_minimal() +
  theme(
    plot.title = element_text(face = "bold"),
    plot.title.position = "plot"
  )
